Template Sigfox

Sigfox template configuration

By selecting the Sigfox type of device among the available template types, thecustomizable fields are shown.

In addition to generic template fields (dashboard template, report template, signals, rules) it's possible to specify:

  • Valid signals, it's possible to add custom signals to the default ones. They will be searched in the payload and stored as signals
  • Sigfox payload transformation function, function that is applied to payload data field and must return an object where keys are signal tokens and values are their values. Signals parsed in data don't need to be listed in valid signals as they are stored automatically

Transmitting to a template

Data must be forwarded to https://api.databoom.com/v1/signals/push/<unique arbitrary value>.

The unique arbitrary value is a value chosen by the user to identify the device uniquely, it is used as description and token for the new device to be created in Databoom, following the format <template token>-<unique arbitrary value>

To authenticate the request you need an OAuth token generated in Databoom with Publish and Create permissiosn

  • In Settings -> Credentials side menu, click the Add OAuth button in the OAuth keys box
  • To grant better security we reccomend to create a new OAuth token for each istance of the template

Data format to use is the following:

    "type": "data",
    "message":  [
        "template": "<Sigfox template token>",
        "date": "2018-04-12T15:00:00.000Z",
        "signals": [
            "name": "<signal 1 token>",
            "value": <signal 1 value>
            "name": "<signal 2 token>",
            "value": <signal 2 value>

<Sigfox template token> is displayed in the Info box in the device page.

date field isn't mandatory, if it's not specified reception date is used.

Signals tokens, <signal 1 token> and <signal 2 token> in the example, can be copied from the device page, by clicking the copy icon next to the corresponding label.

Data publication implies:

  • If there weren't previous communications:
    • the creation of a new device with the token <Sigfox template token>-<unique arbitrary value>. The device will be populated withe the same signals of the template (new signals with the same tokens), regardless their values being sent or less. The signals are already validated and ready to communicate. If signals contains signals not appearing in the template, they're added only to the device, waiting for validation
  • If there were previous communications:
    • the update of <template token>-<unique arbitrary value> with values in signals. If a new signal has been added to the template, it is also created in the device

message is an array, is therefore possible to create/communicate with more devices per publication, provided that they refer to different devices.

Transformation function for published data

If published data content can't be customized according to Databoom accepted format (in the previous paragraph), it is possible to specify, in signal edit page, a transformation function to process the payload an make it compatible to the platform.

The function must return one or more values (array []) in the accepted format:

    'date': <DATE>,
    'value': <VALUE>


    'value': <VALUE>



In case of array, components can use different formats.

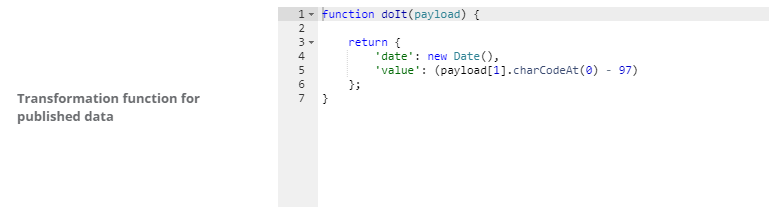

In the example you can see the function doIt

function doIt(payload) {
return { 'date': new Date(), 'value': (payload[1].charCodeAt(0) - 97)
}; }

payload parameter allows to access the published data and process them in order to return them in a compatible format. In the example the value is calculated by subtracting 97 to the code of the first character of the first payload component.
